Česky (CZK)05-TVS NS as nap foam dissipative 100 x 55 x 10 mm
Dissipative dimple foam for ESD protection of electronic components. Dimensions 100 × 55 × 10 mm, surface resistance 8 x 10e10 Ω (IEC 61340-2-3), density 21 kg/m³, soft open-cell PUR foam. More
Product code: B05TVSNSas
Shipping and Payment

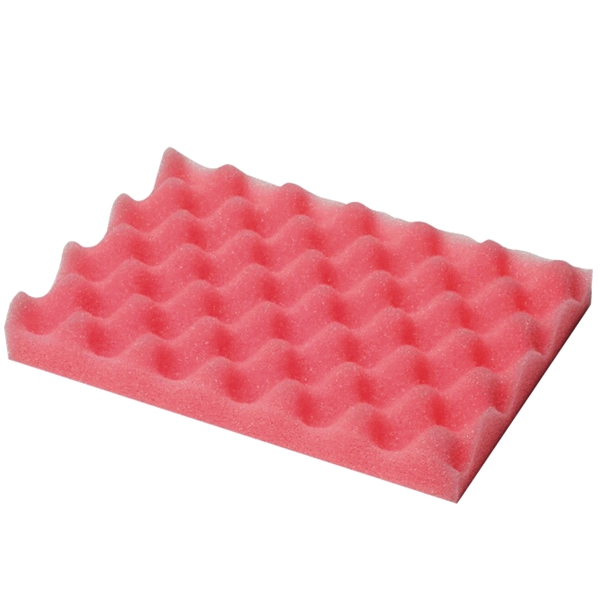

The 05-TVS NS dissipative dimple foam is designed for safe storage and transport of electrostatic sensitive devices (ESD). The soft, open-cell pink PUR foam ensures gentle component contact and controlled static charge dissipation.
- Surface resistance: 8 x 10e10 Ω per IEC 61340-2-3
- Dimensions: 100 × 55 × 10 mm
- Density: 21 kg/m³
- Compressive strength: 4 (40 %) kPa per DIN EN ISO 3386
- Tensile strength: > 140 kPa per ISO 1798
- Material: soft open-cell PUR foam, pink
Typical applications include insertion into transport packaging and trays for electronic components, both inside and outside EPA zones. The dimple surface reduces contact area and mechanical stress on sensitive parts.
| Product type | Foam sheet / die-cut |
|---|---|
| Type of ESD protection | Dissipative |
| Material | PUR |
| Design | Profiled |
| Footprint (mm) | 100 × 55 |
| Width (mm) | 100 |
| Length (mm) | 55 |
| Thickness (mm) | 10 |
